Wafer Type Ball Valve with Pneumatic Actuator
Key Specifications / Features
Model No.: Q71F Hits: 55
China leading ball valve manufacturer JONLOO supplies wafer ball valve with pneumatic actuator. Because of its compact design, JONLOO Monoblock wafer type ball valve needs less space in the process control lines. With its fire safe features, it is common to be used in the following industries: • Oil &Gas industries, • Pressurized air and different gas applications, • Marine Industry, • Storage facilities,etc.
Request a quote
Tags:
Detail Information

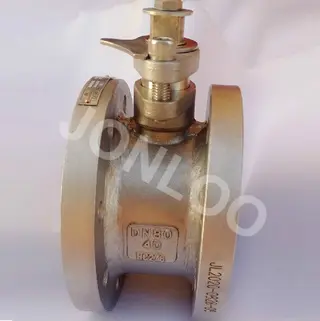

The Monoblock Wafer Type Ball Valve design is used for direct shut off of flow like any Ball Valve. The difference is the compact design and light weight.
The Valve can be used in conjuction with other valves in series to allow for a safer shut off creating a double block for safety. This can also be used with a Double Block and Bleed valve where safety shut off is of great concern but still allows for a small profile.
Features and Benefits
1. Small, Thin design and light weight
2. Design allows you to combine with other valves in series for safe shut off
3. Reliable sealing performance and small torque;
4. Full bore and reduced bore;
5. Low emission packing;
6. Optional locking device
7. Optional ISO 5211 top flange.
8. Fire safe, anti-static and anti-blowout stem design
Product Availability
This valve is available in 316 SS, Carbon Steel, Hastelloy C, Monel and other materials upon request.(NACE material is also available)
The Valve can be used in conjuction with other valves in series to allow for a safer shut off creating a double block for safety. This can also be used with a Double Block and Bleed valve where safety shut off is of great concern but still allows for a small profile.
Features and Benefits
1. Small, Thin design and light weight
2. Design allows you to combine with other valves in series for safe shut off
3. Reliable sealing performance and small torque;
4. Full bore and reduced bore;
5. Low emission packing;
6. Optional locking device
7. Optional ISO 5211 top flange.
8. Fire safe, anti-static and anti-blowout stem design
Product Availability
This valve is available in 316 SS, Carbon Steel, Hastelloy C, Monel and other materials upon request.(NACE material is also available)
