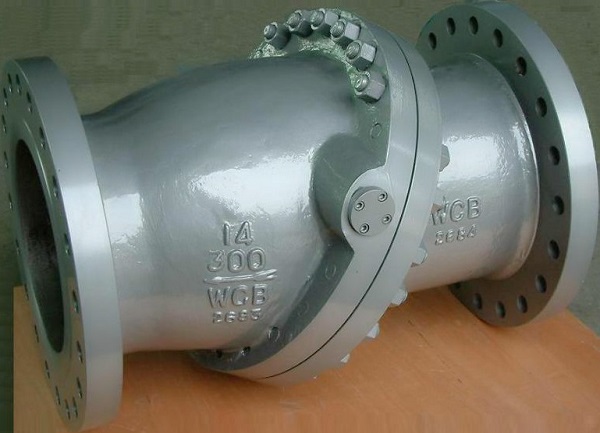

Tilting Disc Check Valve 14Inch 300LB RF

Key Specifications / Features

Model No.: Hits: 113

JONLOO valve company supplies Tilting Disc Check Valve designed in accordance with ASME B16.34, for power industry  water treatment services.
Request a quote

Detail Information

A range of swing check and tilting disc check valves, designed in accordance with ASME B16.34, for power industry  water treatment services.

Features & Benefits:

  • ASME B16.34 design, offered in swing check and tilting disc configurations in 4 standard cast body materials.
  • Easy assembly increased by a pressure seal closure with threaded ring (in small sizes) or segmental ring (in larger sizes, depending on pressure ratings).
  • Pressure seal-type closure of hinge pin.
  • Seat and disc are stellited gr. 6.
  • Seats are welded in.

Swing Check Configuration:

  • Disc is equipped with standard anti-rotation device.
  • Friction ring in the connection between hinge and disc.

Tilting Disc Configuration:

  • Disc is equipped with a dome to balance the weight.
  • Spring-assisted closure to avoid slamming.

General Application:
Recommended for power plant applications which require flow reversal prevention.


Technical Data
Pressure Ratings
Tilting Disc: ASME Classes 150 and 600

Body Materials: A216 WCB, A217 WC6, A217 WC9, A217 C12A
Temperature: -46°C to +650°C

Sizes
Tilting Disc: 2” to 48” (50 to 600 mm)
