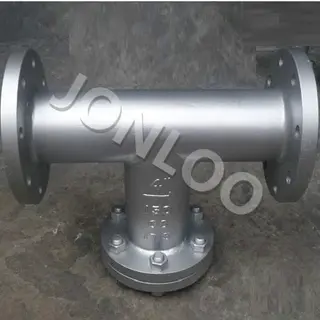

T-type Strainer 5inch 600lb 304 Material RF | JONLOO

China T Strainer Manufacturer Jonloo supplies T Strainer, also called Tee Strainer. The T type strainer is a device for mechanically removing unwanted solids from liquid, gas or steam lines by means of a perforated or wire mesh straining element.

Tags:

• Tee Strainer
• T Strainer
• Stainless Steel Strainer

T-Strainers are devices for mechanically removing unwanted solids from liquid, gas or steam lines by means of a perforated or wire mesh straining element. The T-strainers are used in pipelines to protect pumps, meters, control valves, steam traps, regulators and other process equipment.

T-Strainers are very cost effective straining solutions in many applications. Where the amount of material to be removed from the flow is relatively small, resulting in long intervals between screen cleanings, the strainer screen is manually cleaned by shutting down the line and removing the strainer cap.

Details
Size:5 inch
Pressure:600LB
Body/Cover: A351 CF8
Screen: Stainless Steel(SS304/SS316)
Bolted bonnet,

Features
Excellent sealing performance.
Auto-core function of sealing.
High corrosion resistance of gasket.
Easy seal parts replacement.
Perforable or Mesh Lined Stainless Steel Screens
Suitable for Liquid, Gas or Steam Y Strainer

Standards
Design and Manufacture:ASME B16.34, EN 12516
Face to Face: Manufacturer's standard
Flanged Ends:ASME B16.5, ASME B16.47
Butt weld Ends: EN 12627
Inspection and Test: API598,ISO5208,BS6755
