Stainless Steel Basket Strainer DN 65 PN 16 Duplex 2205
.jpg?q=80&fm=webp&s=d7d409d44616e2bd412532af1eb12ba5)
Key Specifications / Features
Model No.: Hits: 287

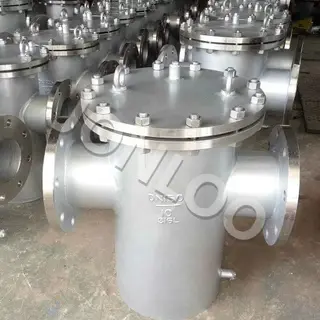

China Basket Strainer ManufacturerJONLOO supplies stainless Steel Basket Strainer. It is shaped like a bucket giving it a larger filtration area than Y-shaped strainers. The screen is simple to replace using the handle, and it can also be used with dense meshes.
Request a quote
Tags:
Detail Information
Details
Size:DN65
Pressure Rating:PN16
Body Material: Duplex stainless Steel 2205
Screen: Duplex Stainless Steel 2205
Bolted Cover
Size:DN65
Pressure Rating:PN16
Body Material: Duplex stainless Steel 2205
Screen: Duplex Stainless Steel 2205
Bolted Cover
Features
Bolted cover
Suitable medium: Water, gas, oil, steam etc
The baske strainer is installed in the pipeline to get rid of the dirt in the flow
to clear the medium in order to make the equipments and instruments operate smoothly.
Standards
Design & Manufacture : ASME B16.34
Face to Face: ASME B16.10
Flanged Ends: ASME B16.5
Pressure & Temperature: ASME B16.34
Test & Inspection: API 598
Visual Inspection: MSS SP-55
