Stainless Check Valve Swing Type CF8M 8INCH 300LB
Stainless Check Valve Swing Type CF8M 8INCH 300LB

Key Specifications / Features

Model No.: H44H Hits: 35

China Check Valve manufacturer JONLOO supplies wide range of stainless check valves, 8 inch check valves. Valves are designed and manufactured according to API 6D/BS 1868.
Request a quote

Next: Swing Check Valve PN100 DN100 WCB DIN Standard

Previous: Dual Plate Check Valve Wafer Type Spring Loaded 6 Inch 150 LB

Detail Information

Details:
Stainless Check Valve
Size: 8 Inch.
Pressure: 300 LB.
Body/Bonnet: ASTM A351 CF8M.
Disc: ASTM A351 CF8M
Seat: SS316

Standards:
Design and Manufacture:API 6D / BS 1868
Face to face: ASME B16.10
Flanged ends: ASME B16.5
Inspection and test： API 598 / API 6D

Features:
Swing type
Bolted bonnet
Anti-rotation disc
Renewable seat ring
Non-penetrate disc shaft
Horizontal service

Comment Form

Nickname*:
E-mail*:
Rate*:
Comments*:

Similar Products

Swing Check Valve A 351 CF8 CLASS 150 18 INCH API 603

Swing Check Valve A 351 CF8 CLASS 150 18 INCH API 603

Request a quote

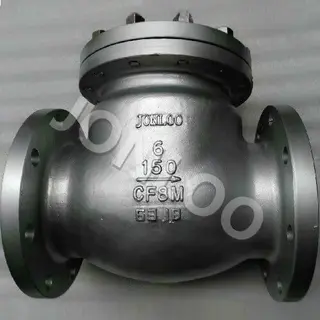

SS Check Valve Swing Type 150LB 6inch
