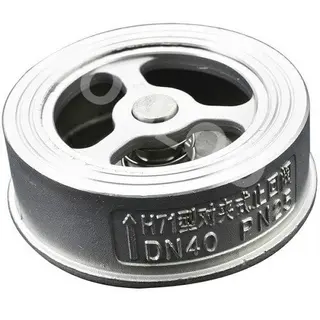

Single Disk Spring Loaded Wafer Check Valve | JONLOO

China Check Valve supplier Jonloo makes Single Disk Spring Loaded Wafer Check Valve, which is featured with full bore, disc type, spring return, vertical or horizontal mounting.

Tags:

• Check Valve
• Wafer Check Valve

Details

Size range : DN15- DN300
Material: WCB, CF3, CF8, CF3M, CF8M
Nominal Diameter: DN15-200mm
PN: PN1.0-15.0 Mpa
Suitable medium: water, steam, oil
Temperature: -29-425 °C

Standards
Design:ASME B16.34
Wall Thickness:ASME B16.34
Test and Inspection:MSS SP-110, EN12266

Features
1. Simple structures and small dimensions
2. For direct assembly between flanges in accordance with ASME or DIN
3. No maintenance
4. Light weight
5. Full bore (FB)
6. Spring loaded
7. Metal to metal or resilient seal
