Why Full Bore and 904L Material for Plug Valve

Introduction to Plug Valves

Plug valves are versatile, quarter-turn rotary valves renowned for their durability and ability to handle challenging fluids, including slurries, corrosive media, and high-pressure gases. Their design centers around a cylindrical or tapered plug that rotates to open or block flow. While simple in concept, selecting the right plug valve involves critical decisions, such as choosing between full bore and reduced bore designs and selecting materials like 904L stainless steel for extreme conditions. This blog breaks down these choices to help you optimize performance and cost.

The difference between Full Bore vs. Reduced Bore for Plug Valve

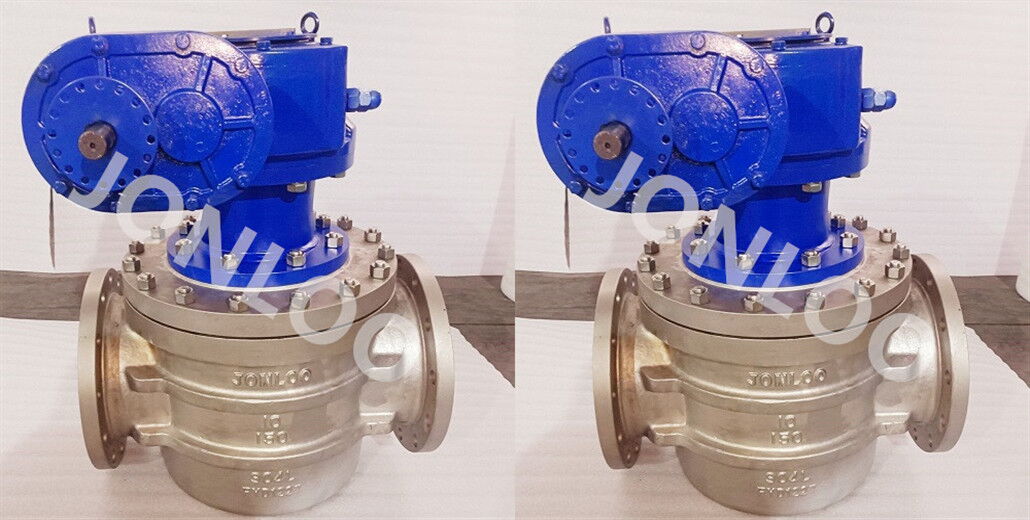

1. Full Bore Plug Valves: Maximizing Flow Efficiency

A full bore (or full port) plug valve has an internal diameter that matches the pipeline's inner diameter. This alignment eliminates flow restrictions, making it ideal for:

• Minimal pressure drop: Critical in high-flow systems to maintain efficiency.

• Slurries and viscous fluids: Prevents clogging from solids or abrasive particles.

• Pigging operations: Allows cleaning or inspection devices (pigs) to pass through pipelines (common in oil and gas).

Typical Applications for Full Bore Valves:

• Oil and gas pipelines requiring frequent maintenance.

• Chemical processing with abrasive or particulate-laden fluids.

• Water treatment plants handling sludge or thick media.

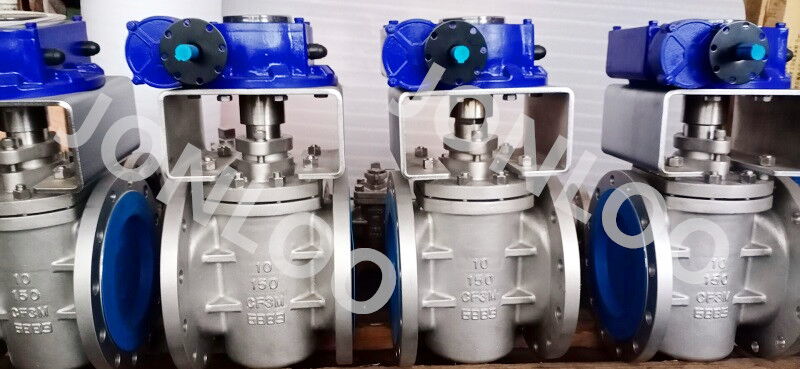

2. Reduced Bore Plug Valves: Compact and Cost-Effective

A reduced bore (or standard port) plug valve has a smaller internal diameter than the pipeline. While this creates a slight flow restriction, it offers advantages such as:

• Space and weight savings: Ideal for cramped installations.

• Lower cost: Reduced material usage lowers manufacturing expenses.

• Sufficient for many applications: Suitable for systems where minor pressure drops are acceptable.

When to Choose Reduced Bore Valves:

• General-purpose water, steam, or gas systems.

• Low-viscosity fluids with no solids (e.g., compressed air lines).

• Budget-conscious projects where flow efficiency is secondary.

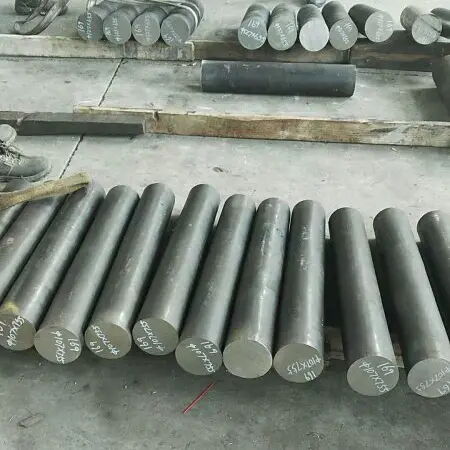

Why 904L Stainless Steel? Material Selection for Harsh Environments

Material choice is critical for plug valve longevity, especially in corrosive or high-stress environments. 904L stainless steel is a premium austenitic alloy with exceptional properties:

• Superior corrosion resistance: Excels in acidic, chloride-rich, or saline environments (e.g., seawater, sulfuric acid).

• High strength: Maintains integrity under extreme temperatures and pressures.

• Resistance to pitting and crevice corrosion: Vital for offshore, marine, or chemical industries.

Applications Demanding 904L Stainless Steel:

• Chemical and petrochemical plants: Handling aggressive acids or chlorides.

• Marine and offshore systems: Exposed to seawater or humid, salty air.

• Pharmaceutical and food industries: Where hygiene and corrosion resistance are non-negotiable.

• Flue gas desulfurization (FGD) systems: Combating sulfuric acid byproducts in power plants.

(Table: Comparison of 904L vs. 316L Stainless Steel Properties)

Conclusion: Matching Design and Material to Your Needs

Choosing between full bore and reduced bore plug valves hinges on your system’s flow requirements and operational priorities. Full bore valves excel in high-flow or abrasive scenarios, while reduced bore valves offer cost and space savings for simpler applications. Meanwhile, 904L stainless steel is indispensable for corrosive, high-stress environments, ensuring longevity and reliability.

By aligning valve design and material with your operational demands, you can optimize performance, reduce downtime, and lower lifecycle costs.
