What is Three Way Ball Valve

What is Three Way Ball Valve

The series O-type Three-way ball valve has characteristics of large circulation capacity, compact structure, good sealing performance, long life, etc., economical and practical, and easy to maintain. It is widely used in petroleum, chemical, natural gas, electric power, metallurgy, food, pharmaceutical and other occasions with strict requirements. It can also be applied to water, steam, oil, liquefied gas, natural gas, coal gas and other media.

In addition, special hardening treatments can be selected according to customer needs, suitable for -196 - 400 ℃, providing safer and more extensive applications.

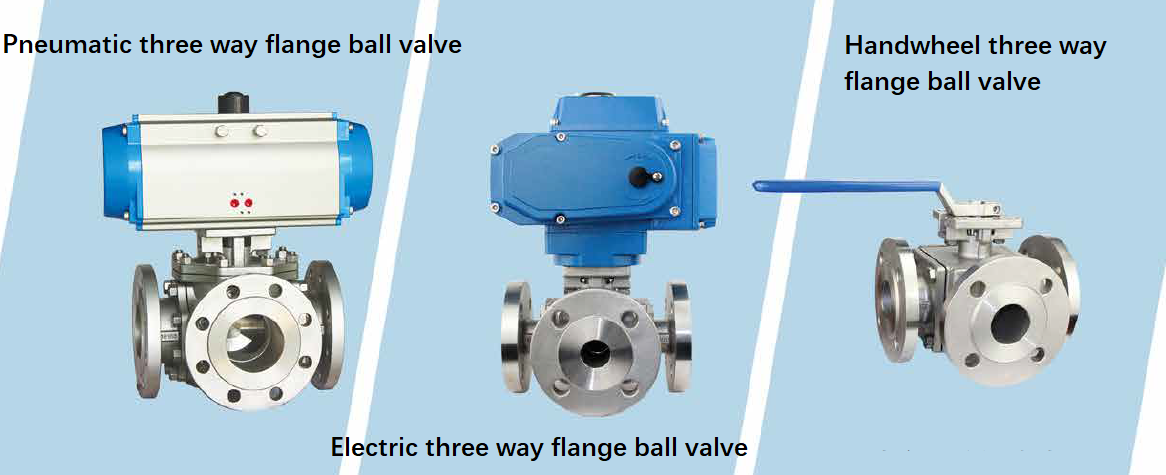

Three-Way Flange Ball Valve

three way flange ball valve

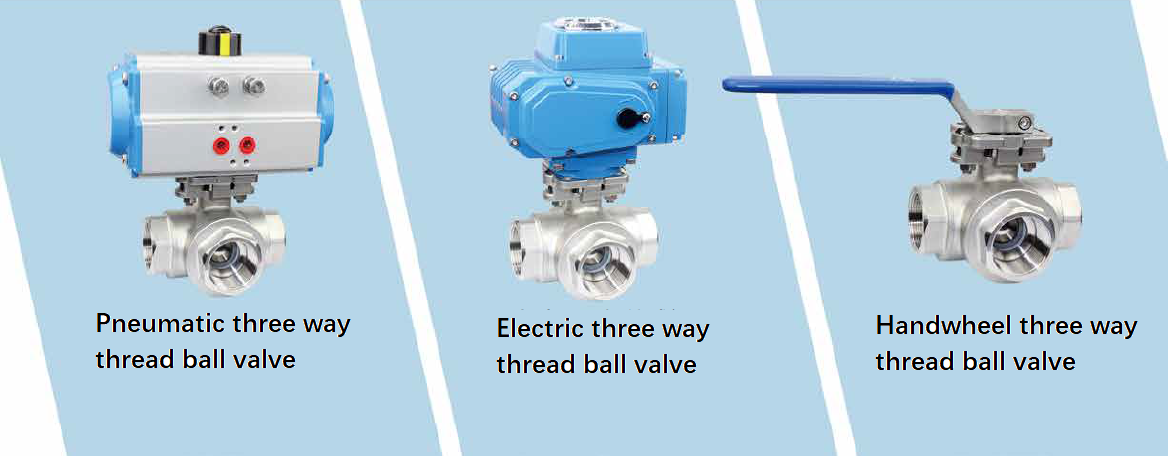

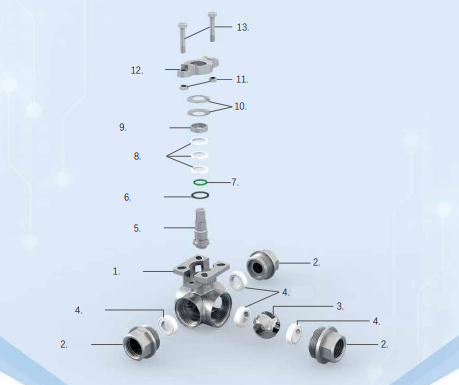

Three-way thread ball valve

thread ball valve

Features

1. The valve body adopts precision casting or forging, with a compact structure and beautiful appearance. The spool and stem of the O-type three-way ball valve make a rotating movement. When the spool is turned, the spool and valve seats are always in close contact with each other, which has a strong shearing ability;

2. The valve seat can be designed to be preloaded by a cylindrical spring or butterfly spring, with automatic compensation, self-sealing and automatic pressure relief in the valve cavity, suitable for high temperatures and high-pressure occasions;

3. The rotating design of the valve ball can ensure the smooth operation of the valve ball and reduce the operating torque;

4. There are optional soft and hard seals, and the sealing surface can be hardened, suitable for a variety of working conditions;

5. The automatic pressure relief design of the valve middle cavity. When the medium temperature of the valve body cavity rises and causes abnormal pressure increase, it does not need to pass the safety valve. Still, it can automatically relieve pressure only by the function of the valve seat, which improves the safety of the valve when conveying liquid medium.

6. Emergency fat injection rescue, in some special occasions, due to foreign objects in the medium or fire caused by the accidental failure of the valve seat seal, the grease injection valve provides a quick connection with the grease injection gun, which is convenient and quick to inject the sealing grease into the valve seat sealing part To mitigate the leak;

7. Ball valve Antistatic design, Anti-flying design of valve stem;

8. The elongated stem design is suitable for low-temperature applications;

9. Three-way ball valve Any port can be used as an inlet without leakage, It can be made into L-shaped or T-shaped channels according to the working conditions, which makes installation more convenient;

10. Inspection and maintenance can be performed without removing the entire valve body after the system is relieved of pressure;

11. Three-way ball valves are divided into L-type and T-type. L-type is suitable for medium flow switching, which can connect two channels perpendicular to each other. T-type is suitable for medium splitting, confluence or flow direction switching;

12. The two-seat sealed three-way ball valve has a compact structure, beautiful appearance, and good sealing performance. It can switch the flow direction of the pipeline medium, and can also connect or close the two perpendicular channels;

13. The four-seat sealed three-way ball valve has a beautiful shape and reasonable structure, which can not only realize the switching of the medium flow direction, but also make the three channels communicate with each other, and flexibly control the merge or split flow of the medium in the pipeline;

14. Any port of the four-way ball valve can be used as an inlet without leakage, and can be made into various types of channels according to the working conditions, making the installation more convenient;

15. The four-seater sealed four-way ball valve has a beautiful shape and reasonable structure, which can not only realize the switching of the medium flow direction, but also make the four channels communicate with each other, and flexibly control the merge or split flow of the medium in the pipeline.

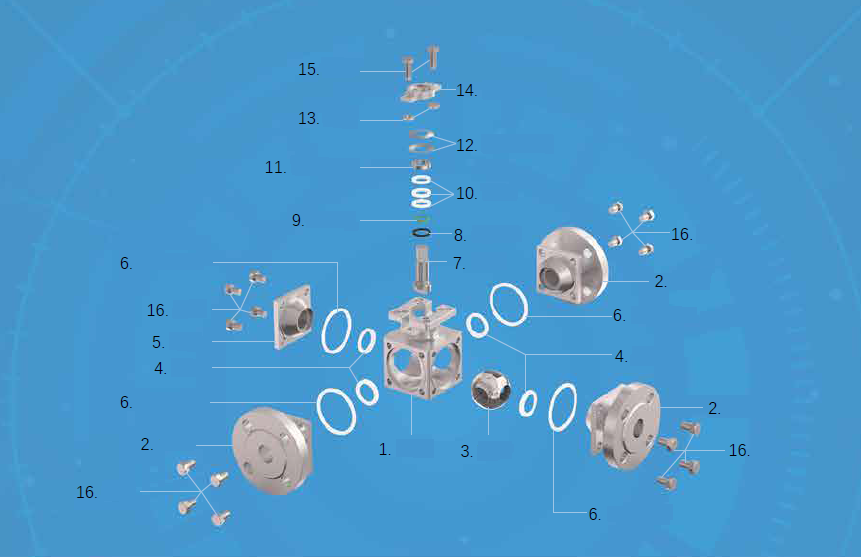

Main parts materials

NO. Part Name Material
1 Body ASTM A216 WCB, ASTM A351 CF8, ASTM A351 CF8M, CF3M
2 Bonnet ASTM A216 WCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3M
3 Ball body SS 304, SS 316, SS 316L, SS 316L + STL
4 Seat PTFE, PPL, Metal seal, etc.
5 Cover board ASTM A216 WCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3M
6 Middle head gasket PTFE, PPL, Metal gasket
7 Stem SS 304, SS 316, SS 316L, 17-4PH, S20910
8 Inverted seal PTFE, PPL, Stainless steel wound graphite
9 O-ring VITON
10 Filler PTFE, PPL, Flexible graphite
11 Filling clamping ring SS 304
12 Butterfly spring SS 304
13 NUT 2H, SS 304
14 Gland of valve ASTM A351 CF8
15 Screw ASTM B7, SS 304
16 Screw ASTM B7, SS 304

main material parts

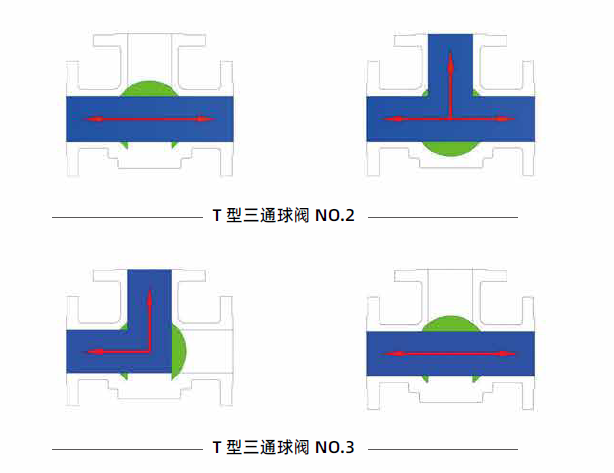

Schematic diagram of three-way flow

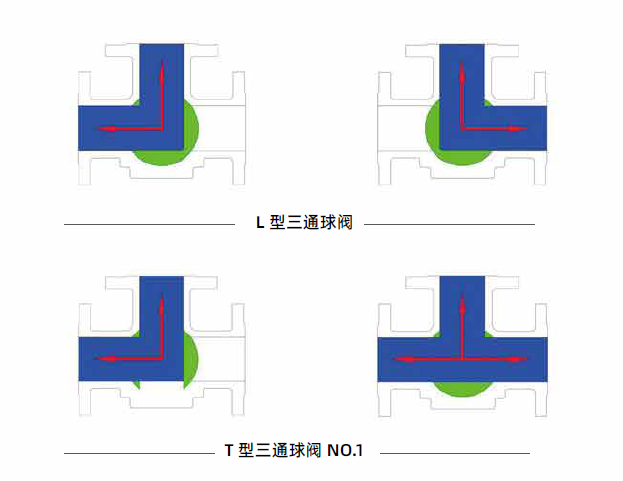

L type and T type Flow

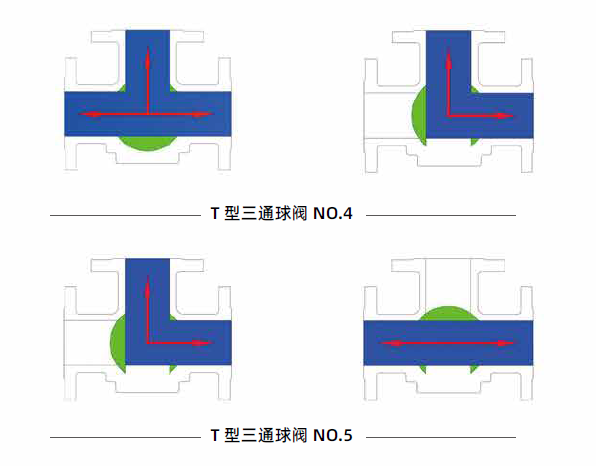

T Type Flow

T Flow Type

Product Specifications

Nominal pressure PN1.6-42MPa, ANSI 150 LB-2500 LB
Nominal diameter(mm) DN15-DN400
Connection Type Flange, Thread, Butt welding, Socket welding
Body material LCB, WCB, CF8, CF8M, CF3, CF3M
Valve seat form Soft seat, metal seat (hardened sealing surface)
Proper temperature Soft seat: -20 - +200℃, Metal seat: -196 - +400℃
Leakage level ANSI VI
Design standards GB/T 12237, ASME B16.34
Structure length GB/T 12221, ASME B16.10
Testing standards GB/T 13927, API 598
Operation method Manual, pneumatic, electric, etc.
Optional Anti-static design, fire protection design, oil-free treatment, Copper
Prohibition, Spherical special treatment, Customers request painting

Product structure design features

1. Valve stem anti-blowing structure design (see picture 1)

In valve stem anti-blowing structure design, the lower end is larger and the upper end is smaller. The positioning of the upper-end cover and screws, even in the valve cavity is abnormal. In this case, it can also ensure that the valve stem will not be blown out by the medium.


picture 1

2. Anti-static design (See picture 2)

The fixed ball valve adopts an anti-static design to make the ball, stem and valve. The body forms an electrostatic channel so that the ball and the seat are switched. During the process, static electricity generated by friction is led to the ground through the valve body, Preventing the risk of fire or explosion caused by static sparks.


picture 2

KV rated

SIZE DN15 DN20 DN25 DN32 DN40 DN50 DN65 DN80 DN100 DN125 DN150 DN200 DN250 DN300
Kv 26 65 91 150 265 480 750 1260 2300 3800 5400 9900 15000 25000

Soft seal torque table (N.m​)

SIZE DN15 DN20 DN25 DN32 DN40 DN50 DN65 DN80 DN100 DN125 DN150 DN200 DN250 DN300
PN16 8 12 18 29 35 65 89 120 220 500 800 1400 1950 2620
PN25 10 14 22 40 50 80 120 160 280 650 1000 1700 2400 3740
PN40 14 20 48 60 70 100 200 300 500 900 1400 1992 3380 5600
PN63 30 60 100 130 160 200 400 600 800 1200 1780 3000 5120 8580
PN100 38 70 136 200 260 380 760 920 1540 1310 3780 6560 10500 14400
PN160 48 88 170 250 306 476 900 1150 1926 2096 4639 8232 11820 20274
CL150 9 14 26 36 48 75 100 150 270 600 940 1560 2210 3310
CL300 17 25 55 90 110 140 280 350 620 1050 1600 2400 3472 4776
CL600 38 70 136 200 260 380 720 920 1540 1310 3780 6560 10500 14400
CL900 48 88 170 250 306 476 900 1150 1926 2096 4639 8232 11820 20274
CL1500 64 110 230 285 342 592 1126 1436 2408 3810 7630 14430 21980 32206
CL2500 98 165 345 430 520 1178 1472 3154 3930 4912 11002 23572 26444 40150

Note: The black part is the torque table of the floating three-way four-way ball valve, and the red part is the torque table of the fixed three-way, four-way ball valve.

Hard seal torque table (N.m)

SIZE DN15 DN20 DN25 DN32 DN40 DN50 DN65 DN80 DN100 DN125 DN150 DN200 DN250 DN300
PN16-L 18 22 31 42 62 88 126 192 308 650 1000 1600 2300 3000
PN16-T 34 42 59 80 118 167 239 365 585 1087 1630 2508 3302 5329
PN25-L 20 25 40 75 83 115 176 264 396 803 1320 2035 2453 4015
PN25-T 38 47 76 142 158 218 334 502 752 1526 2508 3866 4660 7628
PN40-L 22 33 59 112 132 165 264 451 676 1265 2156 2750 3619 6006
PN40-T 42 63 112 213 251 313 502 857 1284 2403 4096 5225 6876 11411
PN63-L 27 46 77 165 211 286 429 726 1023 2090 3245 4620 6116 9427
PN63-T 51 87 146 313 400 543 815 1379 1944 3971 6165 8778 11620 17900
PN100-L 33 60 115 213 330 286 517 946 1452 2178 3157 5874 10186 14982
PN100-T 63 114 218 405 627 543 982 1797 2759 4138 5998 11160 19353 28466
PN160-L 42 93 170 297 429 429 781 1419 2145 3432 4928 8635 17050 24700
PN160-T 80 178 323 564 815 815 1484 2696 4075 6521 9363 16406 32395 46900
CL150-L 19 23 37 62 68 103 143 225 341 671 1078 1595 2035 3685
CL150-T 36 44 70 118 129 196 272 427 648 1275 2048 3030 3866 6999
CL300-L 24 35 71 129 154 235 324 605 825 1628 2651 3971 4917 7645
CL300-T 46 66 125 245 293 446 616 1150 1567 3093 5037 7545 9342 14525
CL600-L 33 60 115 213 330 286 517 946 1452 2178 3157 5874  10186 14982
CL600-T 63 114 218 405 627 543 982 1797 2759 4138 5998 11160 19353 28466
CL900-L 42 93 170 297 429 429 781 1419 2145 3432 4928 8635 17050 24700
CL900-T 80 178 323 564 815 815 1484 2696 4075 6521 9363 16406 32395 46900

Note: The black part is the torque table of the floating three-way four-way ball valve, and the red part is the torque table of the fixed three-way four-way ball valve.

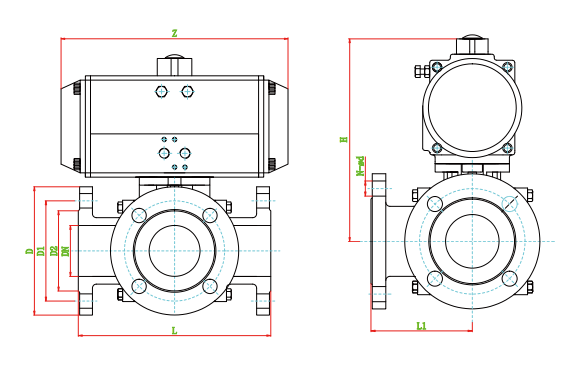

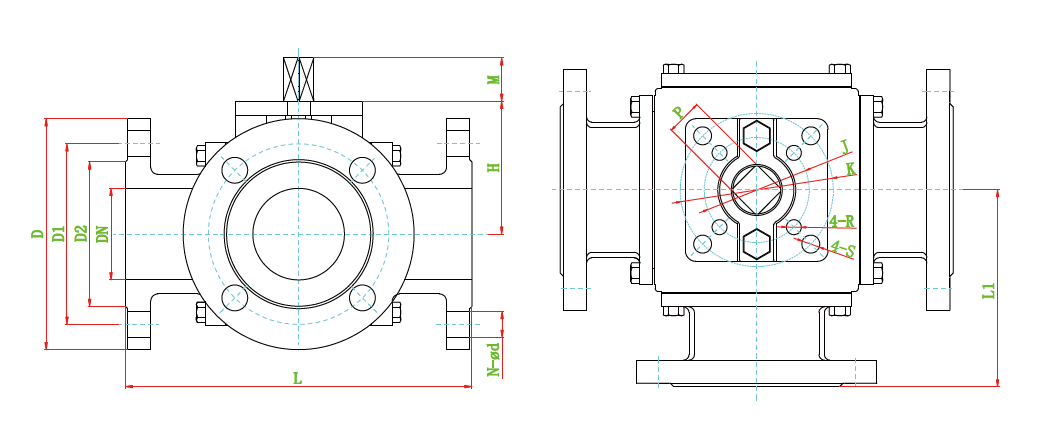

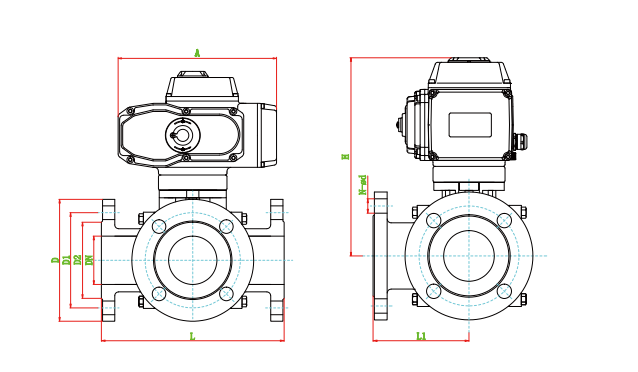

Three-Way Flange Ball Valve



GB PN16 Main dimensions table (Unit: mm​)

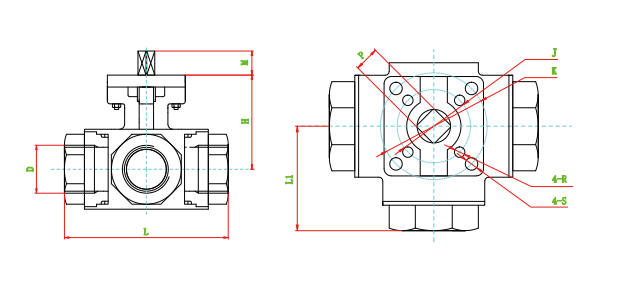

SIZE

L

L1

D2

D1

D

N-ø d

M

H

J

K

P

R

S

DN15

150

75

45

65

95

4-ø 14

13

58

42

50

11

6

7

DN20

160

80

58

75

105

4-ø 14

16

61

50

70

14

7

9

DN25

180

90

68

85

115

4-ø 14

16

72

50

70

14

7

9

DN32

200

100

78

100

140

4-ø 18

16

81

50

70

14

7

9

DN40

220

110

88

110

150

4-ø 18

19

103

70

102

17

9

11

DN50

240

120

102

125

165

4-ø 18

19

113

70

102

17

9

11

DN65

260

130

122

145

185

8-ø 18

19

120

70

102

17

9

11

DN80

280

140

138

160

200

8-ø 18

24

162

125

140

22

14

18

DN100

320

160

158

180

220

8-ø 18

24

184

125

140

22

14

18

DN125

380

190

188

210

250

8-ø 18

29

215

140

165

27

18

22

DN150

440

220

212

240

285

8-ø 22

29

250

140

165

27

18

22

DN200

550

275

268

295

340

12-ø 22

38

334



165

36



22

DN250

670

335

320

355

405

12-ø 26



380



165







DN300

850

425

378

410

460

12-ø 26



405



165









GB PN25-PN40 Main dimensions table (Unit: mm)


SIZE

L

L1

D2

D1

D

N-ø d

M

H

J

K

P

R

S

DN15

150

75

45

65

95

4-ø 14

13

58

42

50

11

6

7

DN20

160

80

58

75

105

4-ø 14

16

61

50

70

14

7

9

DN25

180

90

68

85

115

4-ø 14

16

72

50

70

14

7

9

DN32

200

100

78

100

140

4-ø 18

16

81

50

70

14

7

9

DN40

220

110

88

110

150

4-ø 18

19

103

70

102

17

9

11

DN50

240

120

102

125

165

4-ø 18

19

113

70

102

17

9

11

DN65

290

145

122

145

185

8-ø 18

19

120

70

102

17

9

11

DN80

310

155

138

160

200

8-ø 18

24

177

125

140

22

14

18

DN100

350

175

162

190

235

8-ø 22

24

184

125

140

22

14

18

DN125

440

220

188

220

270

8-ø 26

29

215

140

165

27

18

22

DN150

480

240

218

250

300

8-ø 26

29

250

140

165

27

18

22



DN200

PN25

600

300

268

310

365

12-ø 26

38

334



165

36



22

PN40

660

330

285

320

375

12-ø 30

38

334



165

36



22



DN250

PN25

730

365

335

370

425

12-ø 30



380



165







PN40

780

590

345

385

450

12-ø 33



380



165









DN300

PN25

850

425

395

430

485

16-ø 30



405



165







PN40

900

450

410

450

515

16-ø 33



405



165









ASME CLASS150 Main dimensions table (Unit: mm)

SIZE L L1 D2 D1 D N-ø d M H J K P R S
NPS1/2 150 75 34.9 60.3 90 4-ø 16 13 58 42 50 11 6 7
NPS3/4 160 80 42.9 69.9 100 4-ø 16 16 61 50 70 14 7 9
NPS1 180 90 50.8 79.4 110 4-ø 16 16 72 50 70 14 7 9
NPS1-1/4 200 100 63.5 88.9 115 4-ø 16 16 81 50 70 14 7 9
NPS1-1/2 220 110 73.0 98.4 125 4-ø 16 19 103 70 102 17 9 11
NPS2 240 120 92.1 120.7 150 4-ø 19 19 113 70 102 17 9 11
NPS2-1/2 260 130 104.8 139.7 180 4-ø 19 19 120 70 102 17 9 11
NPS3 310 155 127.0 152.4 190 4-ø 19 24 177 125 140 22 14 18
NPS4 350 175 157.2 190.5 230 8-ø 19 24 184 125 140 22 14 18
NPS5 380 190 185.7 215.9 255 8-ø 22 29 215 140 165 27 18 22
NPS6 440 220 215.9 241.3 280 8-ø 22 29 250 140 165 27 18 22
NPS8 550 275 269.9 298.5 345 8-ø 22 38 334   165 36   22
NPS10 670 335 323.8 362.0 405 12-ø 26   380   165
NPS12 850 425 381.0 413.8 485 12-ø 26   405   165

ASME CLASS300 Main dimensions table (Unit: mm)


SIZE

L

L1

D2

D1

D

N-ø d

M

H

J

K

P

R

S

NPS1/2

160

80

34.9

66.7

95

4-ø 16

13

58

42

50

11

6

7

NPS3/4

180

90

42.9

82.6

115

4-ø 19

16

61

50

70

14

7

9

NPS1

200

100

50.8

88.9

125

4-ø 19

16

72

50

70

14

7

9

NPS1-1/4

220

110

63.5

98.4

135

4-ø 19

16

81

50

70

14

7

9

NPS1-1/2

240

120

73.0

114.3

155

4-ø 22

19

103

70

102

17

9

11

NPS2

260

130

92.1

127.0

165

8-ø 19

19

113

70

102

17

9

11

NPS2-1/2

320

160

104.8

149.2

190

8-ø 22

24

172

125

140

22

14

18

NPS3

350

175

127.0

168.3

210

8-ø 22

24

177

125

140

22

14

18

NPS4

400

200

157.2

200.0

255

8-ø 22

24

184

125

140

22

14

18

NPS5

440

220

185.7

235.0

280

8-ø 22

29

250

140

165

27

18

22

NPS6

480

240

215.9

269.9

320

12-ø 22

29

300

140

165

27

18

22

NPS8

660

330

269.9

330.2

380

12-ø 26

38

440



165

36



22


JIS 10K Main dimensions table

SIZE L L1 D2 D1 D N-ø d M H J K P R S
15A 150 75 51 70 95 4-ø 15 13 58 42 50 11 6 7
20A 160 80 56 75 100 4-ø 15 16 61 50 70 14 7 9
25A 180 90 67 90 125 4-ø 19 16 72 50 70 14 7 9
32A 200 100 76 100 135 4-ø 19 16 81 50 70 14 7 9
40A 220 110 81 105 140 4-ø 19 19 103 70 102 17 9 11
50A 240 120 96 120 155 4-ø 19 19 113 70 102 17 9 11
65A 260 130 116 140 175 4-ø 19 19 120 70 102 17 9 11
80A 280 140 126 150 185 8-ø 19 24 162 125 140 22 14 18
100A 320 160 151 175 210 8-ø 19 24 184 125 140 22 14 18
125A 380 190 182 210 250 8-ø 23 29 215 140 165 27 18 22
150A 440 220 212 240 280 8-ø 23 29 250 140 165 27 18 22
200A 550 275 262 290 330 12-ø 23 38 334   165 36   22
250A 670 335 324 355 400 12-ø 25   380   165
300A 850 425 368 400 445 16-ø 25   4405   165



GB PN16 Main dimensions table (Unit: mm)




SIZE



L



L1



D2



D1



D



N-ø d

DA

SR

H

Z

H

Z

DN15

150

75

46

65

95

4-ø 14

150

147

170

168

DN20

160

80

56

75

105

4-ø 14

170

168

190

204

DN25

180

90

65

85

115

4-ø 14

190

184

210

262

DN32

200

100

76

100

140

4-ø 18

210

204

235

268

DN40

220

110

84

110

150

4-ø 18

240

262

290

296

DN50

240

120

99

125

165

4-ø 18

270

268

315

390

DN65

260

130

118

145

185

8-ø 18

215

296

360

454

DN80

280

140

132

160

200

8-ø 18

390

454

420

525

DN100

320

160

156

180

220

8-ø 18

450

525

475

532

DN125

380

190

184

210

250

8-ø 18

500

532

530

610

DN150

440

220

211

240

285

8-ø 22

570

610

606

722

DN200 550 275 266 295 340 12-ø 22 690 722 726 830

ELECTRIC THREE-WAY FLANGE BALL VALVE



GB PN16 Main dimensions table (Unit: mm)


SIZE

L

L1

D2

D1

D

N-ø d

A

H

SIZE

DN15

150

75

46

65

95

4-ø 14

165

200

SPD05

DN20

160

80

56

75

105

4-ø 14

165

210

SPD05

DN25

180

90

65

85

115

4-ø 14

212

240

SPD10

DN32

200

100

76

100

140

4-ø 18

212

250

SPD10

DN40

220

110

84

110

150

4-ø 18

259

310

SPD20

DN50

240

120

99

125

165

4-ø 18

259

320

SPD20

DN65

260

130

118

145

185

8-ø 18

259

335

SPD40

DN80

280

140

132

160

200

8-ø 18

259

365

SPD60

DN100

320

160

156

180

220

8-ø 18

284

420

SPD100

DN125

380

190

184

210

250

8-ø 18

284

440

SPD200

DN150

440

220

211

240

285

8-ø 22

284

470

SPD200

DN200

550

275

266

295

340

12-ø 22

500

700

SPD400



TEE THREAD BALL VALVE




Serial number

Part Name

material

1

Body

CF8, CF8M, CF3M

2

Bonnet

CF8, CF8M, CF3M

3

Ball body

SS304, SS316, SS316L

4

Seat

PTFE, PPL

5

Stem

SS304, SS316, SS316L

6

Inverted seal

PTFE, PPL

7

O-ring

VITON

8

Filler

PTFE, PPL

9

Filling clamping ring

SS304

10

Butterfly spring

SS304

11

NUT

SS304

12

Gland of valve

CF8

13

Screw

SS304


Product structure design feature

Valve stem anti-blowing structure design (see picture 1)
In valve stem anti-blowing structure design, the lower end is larger and the upper end is smaller Under the positioning of the upper-end cover and screws, even in the valve cavity is abnormal In this case, it can also ensure that the valve stem will not blow out by the medium.



Anti-static design(See picture 2)
The fixed ball valve adopts an anti-static design to make the ball, stem and valve The body forms an electrostatic channel. So that the ball and the seat are switched During the process, static electricity generated by friction is led to the ground through the valve body, Preventing the risk of fire or explosion caused by static sparks.



KV rated


SIZE

DN15

DN20

DN25

DN32

DN40

DN50

Kv

13

21

38

72

112

170


Soft seal torque table (N.m)


SIZE

DN15

DN20

DN25

DN32

DN40

DN50

PN16

4

6

10

20

26

32

PN25

7

10

14

22

30

36

PN40

11

14

20

48

60

70

PN63

16

30

60

100

130

160





SIZE

D

L

L1

H

M

P

J

K

R

S

DN15

1/2″

12

79

39.5

48.5

10

9

42

50

6

7

DN20

3/4″

16

86

43

53.5

10

9

42

50

6

7

DN25

1″

20

101

50.5

60

13

11

42

50

6

7

DN32

1-1/4″

25

114

57

67.5

13

11

42

50

6

7

DN40

1-1/2″

32

136

68

74

16

14

50

70

7

9

DN50

2″

38

152

76

82.5

16

14

50

70

7

9

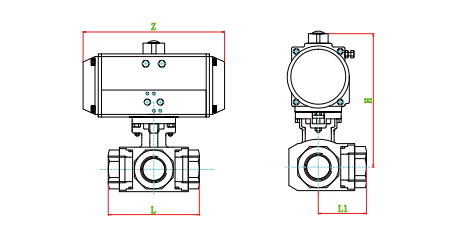

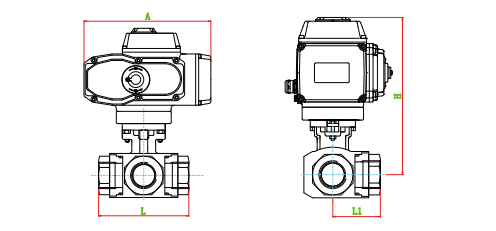

PNEUMATIC/ELECTRIC TEE THREAD BALL VALVE



1000 WOG Main dimensions table (Unit: mm)




SIZE



L



L1

DA

SR

H

Z

H

Z

DN15

1/2″

75

37.5

135

147

150

168

DN20

3/4″

85

42.5

160

168

170

184

DN25

1″

100

50

180

184

190

204

DN32

1-1/4″

115

57.5

190

204

200

262

DN40

1-1/2″

124

62

210

262

225

268

DN50

2″

147

75

230

268

265

296




1000 WOG Main dimensions table (Unit: mm)


SIZE

L

L1

A

H

DN15

1/2″

75

37.5

165

180

DN20

3/4″

85

42.5

165

190

DN25

1″

100

50

165

230

DN32

1-1/4″

115

57.5

212

240

DN40

1-1/2″

124

62

212

275

DN50

2″

147

75

259

285






Name*
E-mail*
Rate*
Comments*
About the author
jw_23321
