What is Jacket?

Jacket means a cavity / gap in between valve body shell thickness and jacket material shell thickness, which allows to flow / pass a media like Hot Oil, Hot Water, Steam, Cold Water etc from the cavity / gap to get continuous trouble free flow in pipe line. At the time of designing a Jacket sufficient gap is must required to complete a circular route of jacket passing flow media, which passing through jacket cavity. In all types of jacketed valve generally one inlet connection provided for entering a media, second for outlet of the same and third as drain connection. Drain connection is not in a standard practice but it can be on request and requirement.

What is Jacketed Valve?

Few words of above question says answer itself. The valves body which have surrounding Jacket, it is called by the name of Jacketed Valve. Jacket can be a Fabricated (welded) from outside body or Integral casting with valve body. Depends on possibility of castings decide to go with fabricated or casted version Jacketed Valve. Various types of Jacketed Valve manufacture and it use depends on flow media, pressure, temperature, performance and operation of valve.

How many types of Jacket can be?

Mostly two types of Jacket use in chemical, pharma, food, petrochemical, fertilizers, viscous, sulfur, bitumen, asphalt, viscous and general process industries.

1. Hot Jacket (Fabricated /Welded with valve body or Integral Casted with valve body) — Hot media passing through jacket cavity

2. Cold Jacket (Fabricated /Welded with valve body or Integral Casted with valve body) — Cold media passing through jacket cavity

3. Heat Jacket — Heat apply by electric coil direct on valve body without any jacket on valve. (Not in a standard practice & advisable)

How many types of Jacket passing flow media can be?

As two types of jackets are standard same flow media is also two types.

1. Hot Media — Hot Oil, Hot Water, Steam

2. Cold Media — Cold Water / Chilled Water

Why use Jacketed Valve in place of ordinary standard Valve?

Hot Jacketed valves being use to prevent solidification of process media in a pipe line and we know better once media jam in a pipe line and stuck up, it is very difficult to re-continue the process system. So where media solidify on room / lower temperature, base on minimum heating temperature requirement jacket media being select and pass through cavity of jacket to meet trouble operation of plant which practical not possible in ordinary standard two way valve.

Cold Jacketed valves being use to control and maintain temperature of process media. Where the process media temperature affect the total system and process of plant, there to prevent upper maximum limit of temperature cold jacket use which recirculate cold water continuous still the plant in operation which is not possible in standard valve.

Types of Jacketed Valve Body Material?

Base on suitability of flow media valve body being select, various types of jacketed valves body materials are as per below:

• Cast Carbon Steel :
  ASTM A 216 GR. WCB | K03504 | 1.0460
• Low Temperature Carbon Steel :
  ASTM A352 Gr. LC1 / LCB / LCC | K03011 | 1.0566
• Austentic Stainless Steel 304 / 316 :
  ASTM A 351 GR. CF 8 / CF 8M | S30400 / S31600 | 1.4301 / 1.4401
  ASTM A 351 GR. CF 3 / CF 3M | S30403 / S31603 | 1.4306 / 1.4404
  ASTM A 351 GR. CF10 / 10H | S3409 / S31609
  ASTM A 351 GR. CF8C | S34700 | 1.4550
  ASTM A 351 GR. CF3M | S31703 | 1.4438
• Alloy 20 :
  ASTM A 351 GR. CN7M | N08020 | 2.4660
• Duplex Steel D2205 :
  ASTM A 351 CD3MN | S31803 | 1.4462
  ASTM A 890 J92205 | S32205 | 1.4462
• Super Duplex Steel D2507 :
  ASTM A 351 CD4MCu | S32750 | 1.4501
  ASTM A 890 5A | S32750 | 1.4501
• Hast Alloy C22 / C276 :
  ASTM A 494 CW 2M | N10276 | 2.4819

Types of Jacket Material?

For casted version jacket material as same body material various option and for fabricated as list below:

• Carbon Steel Pipe :
  ASTM A 106 GR. A/B/C
• Low Temperature Carbon Steel Pipe :
  ASTM A 333 GR. 6
• Austentic Stainless Steel 304 / 316 Pipe :
  ASTM A 312 TYPE 304 / 316
• Austentic Stainless Steel 304L / 316L Pipe :
  ASTM A 312 TYPE 304L / 316L
• Duplex Steel Pipes :
  ASTM / ASME SA 790 — S 31803/S 32205/S 32550/S32750/S 32760

How many types of Jacketed Valve manufacture and available?

Various types of tailor made jacketed valves can be and it's selection depends on type of flow media, working pressure and working temperature. Some example of jacketed valves are as list below:

• Jacketed Ball Valve
• Jacketed Globe Valve
• Jacketed Gate Valve
• Jacketed Non Return Valve
• Jacketed Swing Check Valve

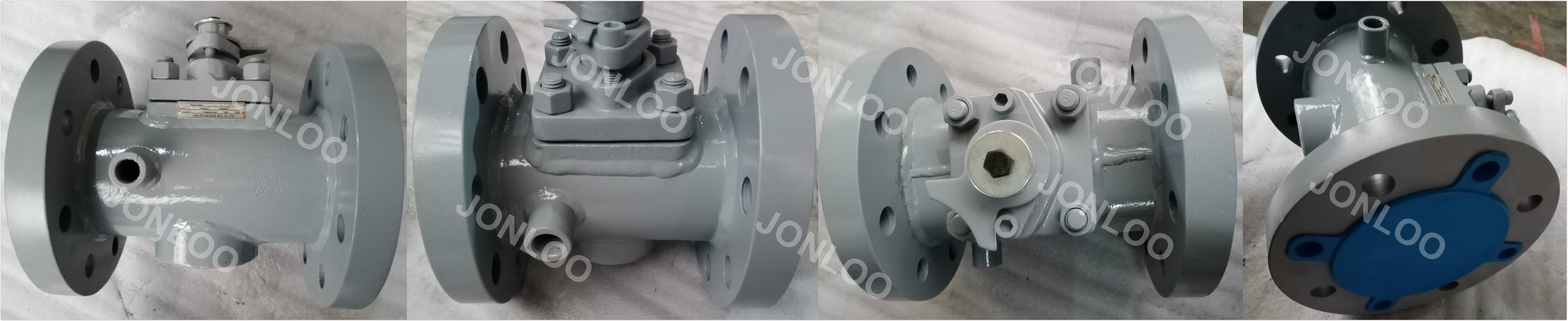

• Jacketed Plug Valve
• Jacketed Butterfly Valve
• Jacketed Strainer
• Jacketed Filter
• Jacketed Sight Glass
• Jacketed Sight Flow Indicator
• Steam Jacketed Valve
• Hot Oil Jacketed Valve
• Full Jacketed Valve
• Half Jacketed Valve
• Partial Jacketed Valve
