A pinch valve is a kind of valve used in many different sectors to control flow, especially in slurry-related applications. It regulates the flow of liquid or solid through the valve by pinching a flexible rubber sleeve. These valves are extensively utilized in sectors like chemical processing, wastewater treatment, and mining.
Another name for it is a clamp valve. This linear motion valve is used to initiate, control, and halt fluid flow. It controls the fluid using a pinch mechanism and a rubber tube, sometimes referred to as a pinch tube. Of all the valve designs, this one is the most straightforward.
Overview
The design and operation of pinch valves are distinct. They are made up of an actuator, a flexible rubber sleeve called a pinch tube, and a valve body. The actuator is in charge of controlling the pinch valve, while the valve body houses the rubber sleeve that makes a passageway for the fluid or slurry to travel through. By squeezing or releasing the sleeve, the rubber sleeve functions as a gate that controls the flow.
In a slurry medium, pinch valves provide a number of advantages over other valve types. By offering a full bore opening, they remove all obstacles from the flow channel. They are perfect for handling slurry or fluids with solid particles because of this property. The elastomer sleeve gives it exceptional flow control capabilities.
How Pinch Valves Work?

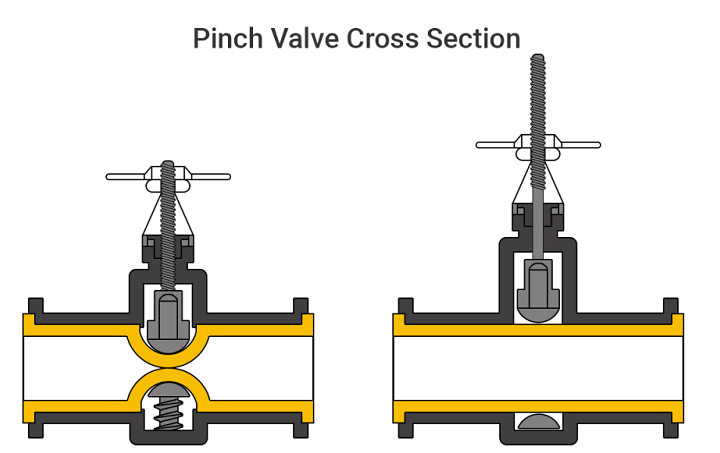

A pinch valve is very easy to use. The rubber sleeve is compressed when the actuator is activated, which causes it to distort and cut off the flow channel. This stops the flow entirely and forms a tight seal. The pressure is reduced and the rubber sleeve regains its natural shape when the actuator is released, enabling the flow to continue. as shown in the picture below.
Types of Pinch Valve
Depending on how they work, pinch valves come in a variety of varieties for a range of applications:
- Air Operated Pinch Valves (Pneumatic Pinch)
- Solenoid Pinch Valves
- Mechanical Pinch Valves
Every kind has unique benefits and works well in various environments.
Pneumatic actuators regulate air-actuated pinch valves, which provide fine-grained flow control. They are frequently employed in sectors like the food and pharmaceutical industries that need precise flow control.
Conversely, solenoid pinch valves are controlled by an electromagnetic solenoid. They are frequently employed in applications where dependable and quick response times are essential.
As their name implies, mechanical pinch valves function mechanically without the need for outside control. They offer an affordable alternative and are appropriate for low-pressure applications. In sectors that value dependability and simplicity, mechanical pinch valves are frequently utilized.
How to Select the Best Pinch Valve for Application
A number of considerations should be made when choosing a pinch valve for a particular application. These variables include the valve's actuation technique, temperature range, flow requirements, pressure rating, maintenance and service life, and construction materials.
Pressure Rating
To guarantee system safety and dependability, you must ascertain the highest pressure the valve will be subjected to while in use and select a pinch valve with a pressure rating in accordance with that.
Temperature Range
Take your application's temperature range into account.You must determine the maximum pressure the valve will be exposed to during operation and choose a pinch valve with a pressure rating that corresponds with that in order to ensure system safety and dependability.ation, the selection of pinch valves should be dependent on how well they can tolerate the temperatures that are encountered during the procedure.
Flow Requirements
Pinch valves vary in size, and the flow capacity will depend on the diameter of the sleeve or tubing. Choose the valve based on the capacity and flow rate required for your application.
Actuation Method
Electrical, pneumatic, or manual means can be used to operate pinch valves. Select the approach that best meets the needs of your application and workflow. If automation is needed, think about using a solenoid or air actuation system.
Maintenance and Service Life Cycle
When choosing a pinch valve, cycle life and maintenance are crucial factors. Selecting a valve with a long service life cycle and low maintenance requirements is essential. This guarantees that the valve will function dependably and offer continuous service for a considerable amount of time.

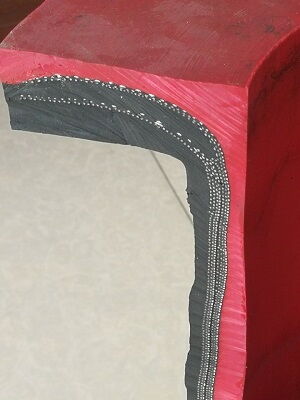

Materials
Compatibility with the fluid or slurry being handled depends on the materials used to create the rubber sleeve and valve body. The resistance of various materials to abrasion, corrosion, and chemical attack varies.
To guarantee longevity and long-lasting performance, it's critical to choose a pinch valve made of materials appropriate for the given purpose. Natural Rubber, Neoprene, EPDM (Ethylene Propylene Diene Monomer), Nitrile, Hypalon, or Viton are the sleeve materials that are available for pinch tubes.

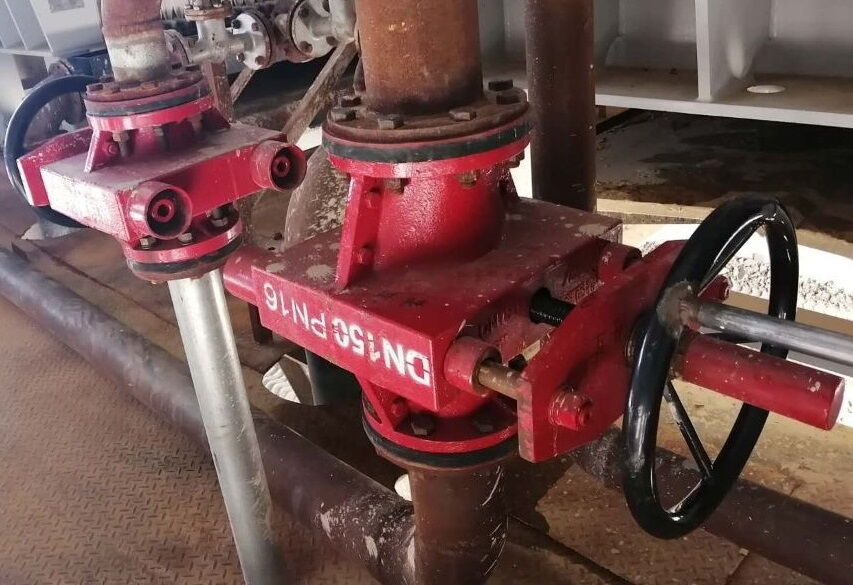

Applications of Pinch Valves
Because of their special features and design, pinch valves are used in many different sectors. They are frequently employed in a variety of industries, including food and beverage, chemical processing, wastewater treatment, and mining. The following are some particular industrial uses for pinch valves:
- Slurry transportation and handling
- Control of abrasive or corrosive fluids
- Powder handling and processing
- Flow control in wet and dry applications
- Handling of viscous fluids
Advantages of Pinch Valves
In some applications, pinch valves are superior to other valve types in a number of ways. Their capacity to deal with caustic or abrasive compounds is one of their key benefits. By creating a barrier between the fluid and the valve body, the rubber sleeve reduces the possibility of contamination or corrosion.
The extensive range of uses for pinch valves is another benefit. They are capable of handling a wide range of fluids, such as powders, slurries, and even gases. Because of its adaptability, pinch valves can be used in a wide range of sectors, including wastewater treatment, chemical processing, and mining.
Furthermore, pinch valves are renowned for their straightforward construction and cheap maintenance costs. When the rubber sleeve wears out or becomes damaged, it can be readily replaced without requiring complicated disassembly or reassembly, which minimizes downtime and makes maintenance simple and affordable.
Disadvantages of Pinch Valves
Pinch valves provide many benefits, but there are some disadvantages as well that need to be taken into account. The comparatively low pressure rating of pinch valves is one of their drawbacks. They might not work well in high-pressure industries and are generally appropriate for low to medium pressure applications.
The possibility of elastomer or rubber sleeve wear and tear is another drawback. The rubber sleeve may deteriorate over time and need to be replaced on a regular basis, depending on the substance being handled. This is a small disadvantage, though, given how simple it is to replace the sleeve in comparison to other valve types that could need more frequent care.
Conclusion
Industries that handle slurries and abrasive materials frequently use pinch valves, which are adaptable flow control valves. They are a well-liked option for applications needing exact flow control because of their distinctive features and style. You may make well-informed decisions to guarantee the best possible performance and efficiency in the operations of pinch valves by being aware of their benefits, drawbacks, and selection criteria.
