W, Wrought;
C-Carbon steel;
A, B, C stands for the strength of the steel grade from low to high
WCA, WCB, WCC represents carbon steel, ABC represents intensity level, and WCB is commonly used. The pipe material corresponding to WCB is A106B, and the corresponding forging material is A105.
WC6 is a casting of alloy steel, the corresponding pipe material is about A355 P11, and the forging is A182 F11;
There is also WC9, high temperature alloy steel, corresponding to A355 P22, forgings corresponding to A182 F22.
WC weldable casting
LCB/LCC (ASTM A352) low temperature carbon steel
1. Chemical Composition Requirements
| Chemical Composition of ASTM A217 Castings, % | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Grade | UNS | C | Mn | P | S | Si | Cr | Mo | Others |
| WC1 | J12524 | ≤0.25 | 0.50-0.80 | ≤0.04 | ≤0.045 | ≤0.60 | - | 0.45-0.65 | *A |
| WC4 | J12082 | 0.05-0.20 | 0.50-0.80 | ≤0.04 | ≤0.045 | ≤0.60 | 0.50-0.80 | 0.45-0.65 | *B |
| WC5 | J22000 | 0.05-0.20 | 0.40-0.70 | ≤0.04 | ≤0.045 | ≤0.60 | 0.50-0.90 | 0.90-1.20 | *C |
| WC6 | J12072 | 0.05-0.20 | 0.50-0.80 | ≤0.035 | ≤0.035 | ≤0.60 | 1.00-1.50 | 0.45-0.65 | *D |
| WC9 | J21890 | 0.05-0.18 | 0.40-0.70 | ≤0.035 | ≤0.035 | ≤0.60 | 2.00-2.75 | 0.90-1.20 | *E |
| WC11 | J11872 | 0.15-0.21 | 0.50-0.80 | ≤0.020 | ≤0.015 | 0.30-0.60 | 1.00-1.50 | 0.45-0.65 | *F |
| C5 | J42045 | ≤0.20 | 0.40-0.70 | ≤0.04 | ≤0.045 | ≤0.75 | 4.00-6.50 | 0.45-0.65 | *G |
| C12 | J82090 | ≤0.20 | 0.35-0.65 | ≤0.035 | ≤0.035 | ≤1.00 | 8.00-10.00 | 0.90-1.20 | *H |
| C12A | J84090 | 0.08-0.12 | 0.30-0.60 | ≤0.025 | ≤0.010 | 0.20-0.50 | 8.0-9.5 | 0.85-1.05 | *H |
| CA15 | J91150 | ≤0.15 | ≤1.00 | ≤0.040 | ≤0.025 | ≤1.50 | 11.5-14.0 | ≤0.50 | *I |
*All values are maximum unless otherwise specified.
*A – Total Residual{Cu:≤0.50,Ni:≤0.50,Cr≤0.35,W≤0.10}:≤1.00. *B – Ni:0.70-1.10,Total Residual{Cu:≤0.50,W≤0.10}:≤0.60.
*C – Ni:0.60-1.00,Total Residual{Cu:≤0.50,W≤0.10}:≤0.60. *D – Total Residual{Cu:≤0.50,Ni:≤0.50,W≤0.10}:≤1.00.
*E – Total Residual{Cu:≤0.50,Ni:≤0.50,W≤0.10}:≤1.00. *F – Total Residual{Al:≤0.01,Cu:≤0.35,Ni:≤0.50,V≤0.03}:≤1.00.
*G – Total Residual{Cu:≤0.50,Ni:≤0.50,W≤0.10}:≤1.00. *H – Total Residual{Cu:≤0.50,Ni:≤0.50,W≤0.10}:≤1.00.
*I – Ni:≤0.40,Co:0.06-0.10,N:0.03-0.07,V:0.18-0.25,Total Residual{Al:≤0.02,Ti≤0.01,Zr≤0.01}. *J – Ni:≤1.00.
*Values from *A to *J shall be furnished with the unit “%”.
2. Mechanical Properties
| Mechanical Properties of ASTM A217 Castings | ||||
|---|---|---|---|---|
| Grade | Tensile Strength, ksi[MPa] | Yield Strength, min. ksi[MPa] | Elongation in 2", min. % | Reduction of Area, min. % |
| WC1 | 65[450]-90[620] | 35[240] | 24 | 35 |
| WC4 | 70[485]-95[655] | 40[275] | 20 | 35 |
| WC5 | 70[485]-95[655] | 40[275] | 20 | 35 |
| WC6 | 70[485]-95[655] | 40[275] | 20 | 35 |
| WC9 | 70[485]-95[655] | 40[275] | 20 | 35 |
| WC11 | 80[550]-105[725] | 50[345] | 18 | 45 |
| C5 | 90[620]-115[795] | 60[415] | 18 | 35 |
| C12 | 90[620]-115[795] | 60[415] | 18 | 35 |
| C12A | 85[585]-110[760] | 60[415] | 18 | 45 |
| CA15 | 90[620]-115[795] | 60[415] | 18 | 30 |
3. Heat Treatment
- All castings shall receive a heat treatment proper to their design and chemical composition.
- ASTM A217 castings shall be furnished in the normalized and tempered conditions; Grades WC1, WC4, WC5, WC6, and CA15 shall be tempered at 1100°F [595°C] min; Grades WC9, C5, C12, and WC11 shall be tempered at 1250°F [675°C] min; Grade C12A shall be thermally treated, either by normalizingand-tempering or by accelerated cooling from the austenitizing temperature by air blasting or liquid quenching, followed by tempering. C12A castings shall be austenitized at 1900-1975°F [1040-1080°C] and tempered at 1350-1470°F [730-800°C].
- Heat treatment shall be performed after castings have been allowed to cool below the transformation range.
4. Quality Control
- The surface of ASTM A217 castings (either valve, flange, fittings or other piping component) shall be visually examined and shall be free of sand, scale, cracks, and hot tears.
- Hollow castings of Grade C12A, larger than NPS 4 [DN 100], and whose internal surfaces are not accessible to the visual examination above-mentioned, shall be examined by the ultrasonic examination prescribed in Supplementary Requirement S7.
The suitable working temperature of WC6 is -29 ~ 540 °C, and the suitable working temperature of WC9 is -29 ~ 570 °C.
Both specifications are chrome-molybdenum steel, and the mechanical properties of the two are basically the same, with the same tensile strength, yield strength and elongation at room temperature.
The Cr-Mo high temperature cast steel used for the valve mainly adopts WC6, WC9 and C5 (ZG1Cr5Mo) in the ASTM A217 standard, and the corresponding rolled materials are F11, F22 and F5 in ASTM A182, respectively.
Low chromium grade chromium-molybdenum steel Low chromium grade chromium-molybdenum steels are available in WC6, WC9, F11 and F22. The suitable working medium is water, steam and hydrogen. It is not suitable for sulfur-containing oils. WC6 and F11 are suitable for -29-540 °C, and WC9 and F22 are suitable for -29-570 °C.
Chromium five molybdenum high temperature steel Chromium five molybdenum high temperature steel has C5 (ZG1Cr5Mo) and F5, and its applicable working medium is water, steam, hydrogen and sulfur oil. C5 (ZG1Cr5Mo), if used for water vapor, has a maximum operating temperature of 600 °C. When used in working media such as sulfur-containing oils, the maximum operating temperature is 550 °C. Therefore, the operating temperature of C5 (ZG1Cr5Mo) is specified to be ≤550 °C.

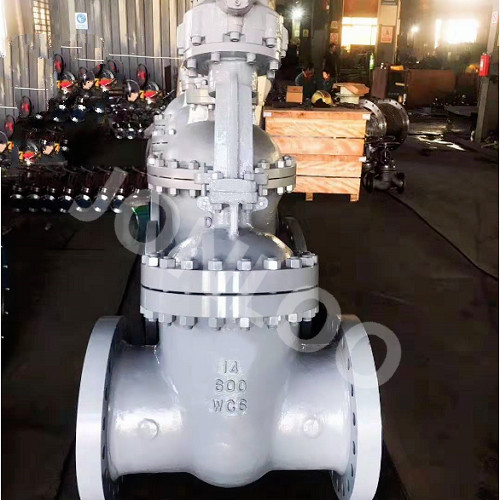

JONLOO makes kinds of A217 casting valves, such as WC6 Gate Valve, WC9 Gate valve, WC6 Globe Valve, WC9 Globe Valve,etc. If you need them, pls contact us.
