Electrical knife gate valve DN80mm PN10 GG25 Wafer Type
Electrical knife gate valve DN80mm PN10 GG25 Wafer Type

Key Specifications / Features

Model No.: Hits: 60

China Knife Gate Valve factory JONLOO supplies Electrical knife gate valve-- DN80mm, PN10, GG25 body, wafer type.
Request a quote

Next: 4 Inch Gate Valve with Chain Wheel 150 LB A216 WCB

Previous: Bellow Sealed Gate Valve 4 inch 150 LB A216 WCB ASME B16.10

Detail Information

1.Technical Data:
Nominal Diameter DN(mm): 50(2’’)~1200(48’’)
Nominal Pressure PN(MPa): 0.6~1.6 (class150)
Testing Pressure Shell PN(MPa): 1.5~2.4
Testing Pressure Sealing PN(MPa): 1.1~1.76
Seal type hard / soft (EPDM,NBR and polyurethane)
Leakage: hard seal: Level D(liquid 0.1xDNmm);soft seal: Level A (zero leakage)


2.Body Meterial can be:

Cast Iron/Ductile Iron / Cast Steel/ stainless steel


3.Application:

Gold mine power,ore tailing,paper or wood pilp,fibers,dust,chemical treatment  sewage,sedimentation tanks,ores,slag,asphalt,bin outlets,fruit,grain,grout,waste water from slaughterhouse,pneumatic transportation pipelines or beer brewage media.


4.Product charateristics:

The valve is featured with compact design,being space-effective,low price,easy installation, complete protection from abrasion and seizure,user-friendly maintenance and operation,long service life and free actuator options.

Comment Form

Nickname*:
E-mail*:
Rate*:
Comments*:

Similar Products

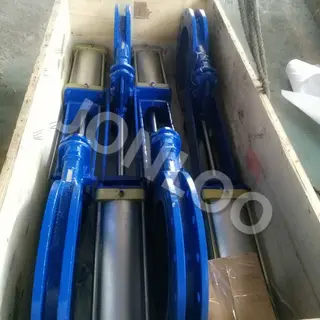

Knife Gate Valve With Pneumatic Actuator
