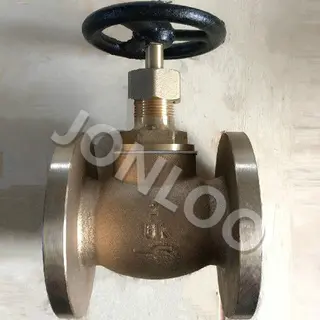

Bronze Globe Valve ASTM B62 C95800 2 INCH 150LB
Key Specifications / Features
Model No.: J41H Hits: 239
Leading Globe Valve manufacturer JONLOO supplies Bronze Globe Valve, including ASTM B61(C92200) globe valve, ASTM B62 (C83600) globe valve, ASTM B148 (C95800) globe valve, etc
Request a quote
Tags:
Detail Information
Details
Size: 2 inch.
Pressure: 150LB.
Material: ASTM B62 (C95800)
Standards
1.Design and Manufacture: BS 1873 / ANSI B16.34
2.Face to Face: ASME B16.10
3.Flanged ends: ASME B16.5
4.Inspection and test: API 598
Features
1.Straight patteren body design
2.OS & Y,outside screw and yoke
3.BB,Bolted bonnet
4.Yoke intergral with bonnet
5.Rising stem and handwheel
6.Loose disc,choice of plug or ball
7.Renewable seat ring
8.Impact handwheel for 10″ & above
9.Horizontal service
10.Flanged or butt weld ends
11.Available with gear operator
Size: 2 inch.
Pressure: 150LB.
Material: ASTM B62 (C95800)
Standards
1.Design and Manufacture: BS 1873 / ANSI B16.34
2.Face to Face: ASME B16.10
3.Flanged ends: ASME B16.5
4.Inspection and test: API 598
Features
1.Straight patteren body design
2.OS & Y,outside screw and yoke
3.BB,Bolted bonnet
4.Yoke intergral with bonnet
5.Rising stem and handwheel
6.Loose disc,choice of plug or ball
7.Renewable seat ring
8.Impact handwheel for 10″ & above
9.Horizontal service
10.Flanged or butt weld ends
11.Available with gear operator
